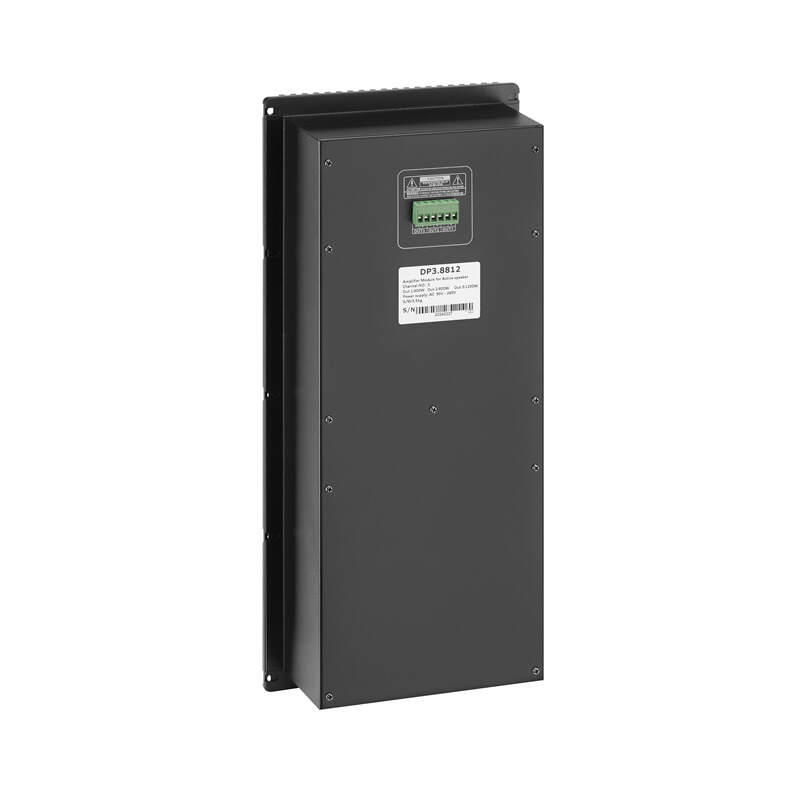

D Series DSP Digital Module(3 channels）Equipped with a display screen
This product is used for factory speaker installation and assembly into active speakers, suitable for outdoor array active speakers, subwoofer active speakers, and conventional PA active speakers, with various power combinations.
3-channel DSP digital module（Equipped with a display screen）:
|
model |
D3.6612 |
D3.8815 |
|
8 Ω power |
600W+600W+1200W |
800W+800W+1500W |
|
interface |
XLR male and female |
|
|
Function adjustment |
1-channel volume adjustment，RS48S |
|
|
output |
3 cable output, switch power supply |
|
|
DSP |
Two in and four out 48KHz sampling, input 31 segment equalization, output 10 segment parameter equalization, Q value, 25ms delay, frequency division, compression, limiting |
|
|
size |
427x192x92 |
|
